Description

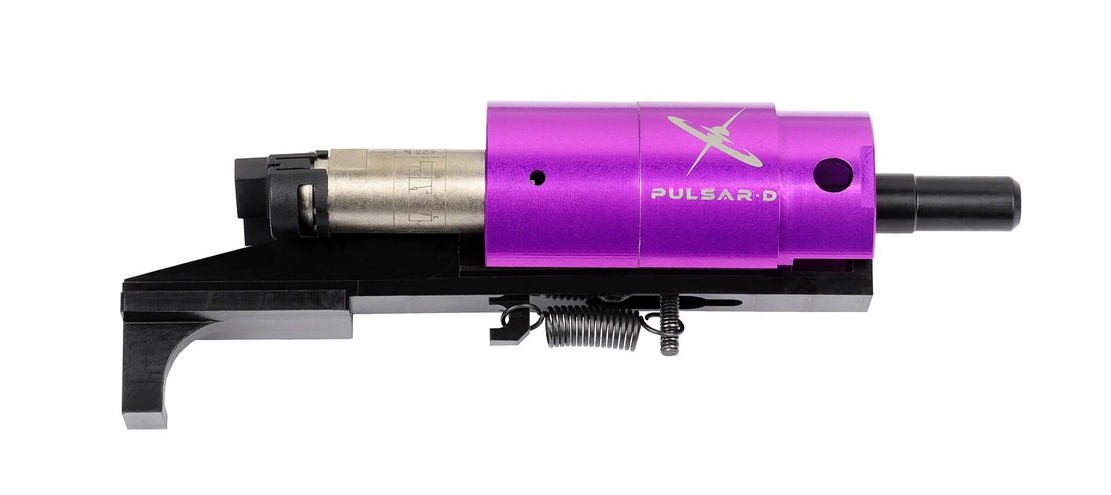

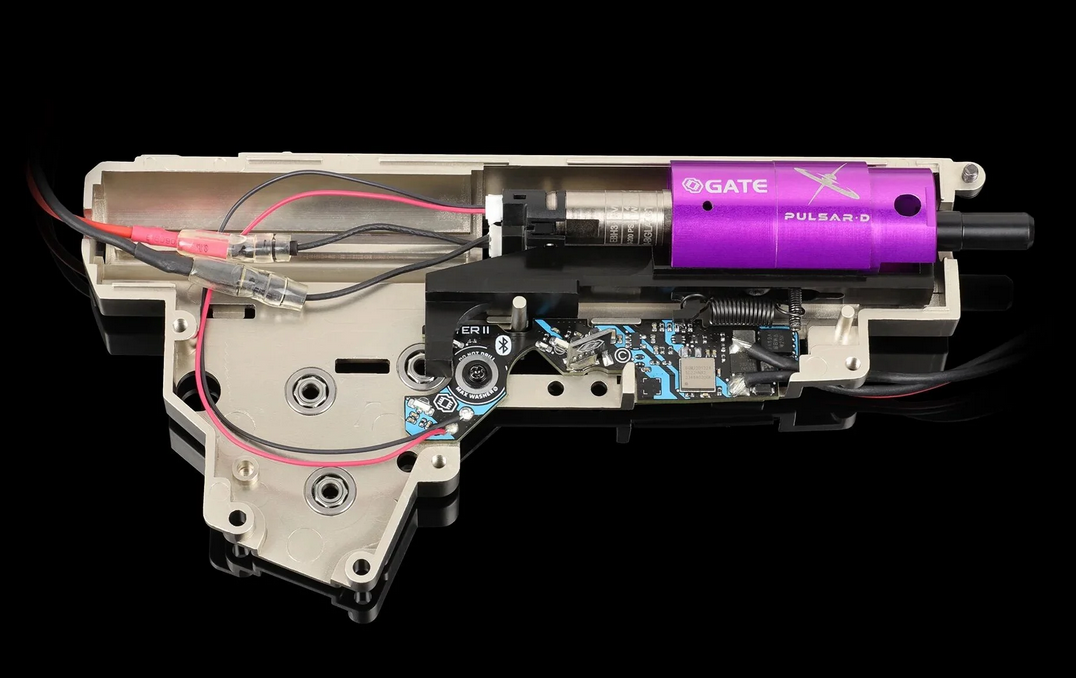

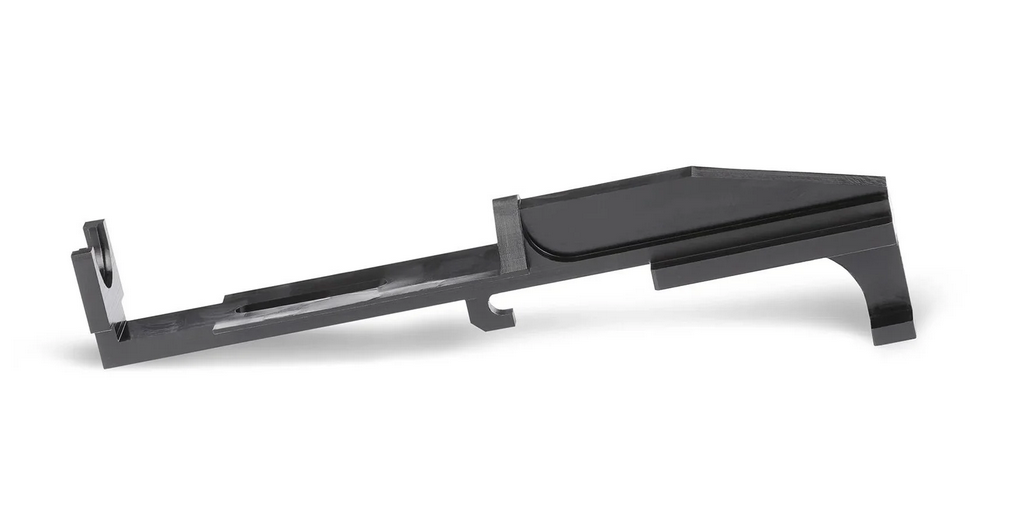

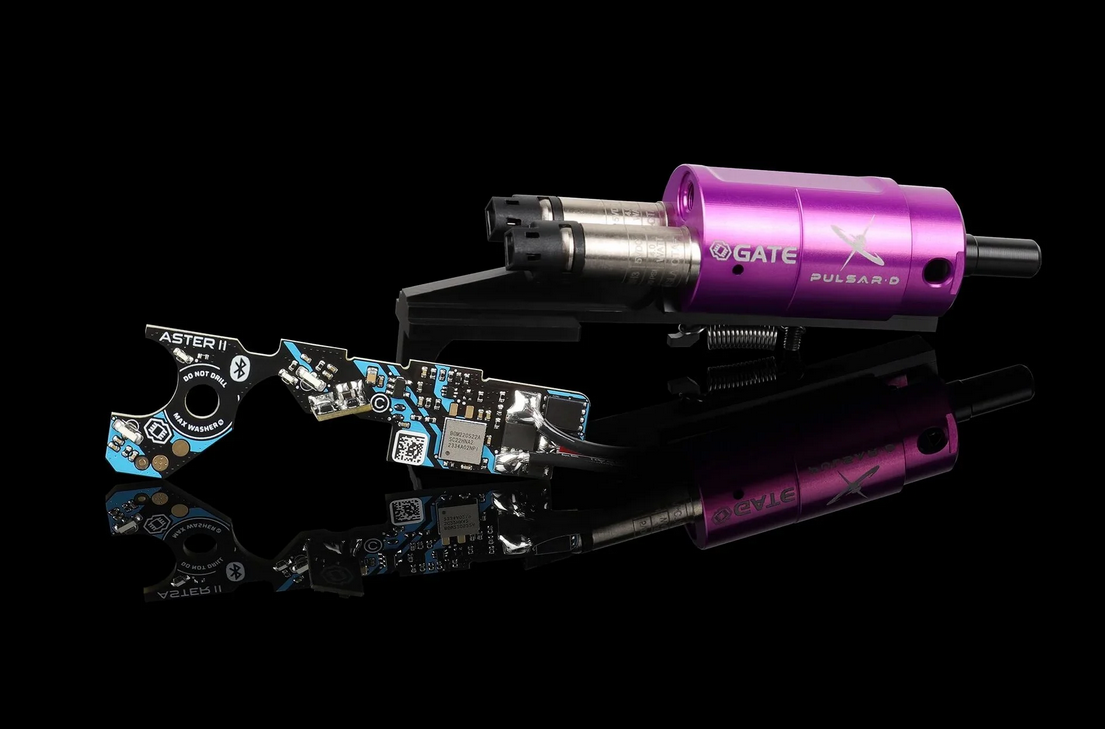

Gate PULSAR D kit for V3 – PULSAR D + ASTER II Bluetooth for V3 + Tappet Plate V3
Gate PULSAR D kit for V3 – PULSAR D + ASTER II Bluetooth for V3 + Tappet Plate V3
- Brand: GATE
- Kit type: HPA conversion kit
- Gearbox compatibility: V3
- Includes: PULSAR D HPA engine + ASTER II Bluetooth (V3) + V3 tappet plate
- Matched V3 components for a cleaner, more straightforward build
- HPA consistency and responsiveness for competitive performance
- ASTER II Bluetooth adds advanced control, tuning and diagnostics
- Great foundation for a high-end V3 HPA rifle build
Pulsar D is unrivaled thanks to the following combination:
- Simple design
- Innovative automatic synchronization of the nozzle movement cycle enables easier calibration – no need to fire thousands of rounds to achieve good FPS results and stable BB trajectories
- Due to its innovative BB feed system and closed-bolt mode, it is definitely less sensitive to replica and assembly quality
- Razor-sharp accuracy of the system – no unstable hop-up system symptom like in other HPA systems
- Seamless integration & compatibility with the most advanced optical ETU/FCU ASTER II Bluetooth® for a synergy effect
- High tolerances eliminating the mid-cap syndrome
- Compatibility with any AEG nozzles
- Zero nozzle wobble resulting in stable FPS when paired with GATE AEG nozzles, which translates into stable FPS and no mid-cap syndrome
- No FPS drops on AUTO relative to SEMI mode at high RPS – up to 40 RPS with no FPS drops
PULSAR D FEATURES
SIMPLE – Easy maintenance, thanks to a well thought-out design
VALUE FOR MONEY – State-of-the-art technology at the best price
COMPACT – Smallest dual solenoid valve closed-bolt HPA engine with innovative cycle synchronization
Bluetooth® ETU/FCU CONTROLLED – ASTER II Bluetooth® V3 gearbox drop-in ETU FCU mosfet AEG HPA – the best Bluetooth optical unit in an HPA replica
- Very high resolution trigger sensor – up to 50 points of sensitivity in the first millimeter
- Bluetooth® 5.2 – connectivity to other elements of the GATE ecosystem, e.g. STATUS, smartwatch
- For the first time in HPA replicas configurable fire modes such as BINARY TRIGGER, BURST, etc.
- Convenient GCS app for iOS, Android, macOS, Windows, watchOS, Wear OS
- Constant access to software updates
AEG COMPATIBILITY – Compatible with AEG nozzles – 5 nozzle lengths included for MP5, M4/M16:
- 20.30mm
- 21.00mm
- 21.15mm
- 21.25mm
- 21.40mm
NO MID-CAP SYNDROME – Eliminated mid-cap syndrome thanks to high dimensional tolerance
ACCURACY – High accuracy due to the innovative BB feed system for HPA engines
STABILITY – FPS stability in full AUTO mode
SPECIFICATIONS
The design and production of the device is based on harmonized standards.
Solenoid Voltage Range
5-8.4 V
Operating Pressure
60-140 PSI – high pressure only
Gas Consumption
For 90 PSI and a 48 ci/0.8 l 300 bar/4500 PSI bottle – 0.7 PSI per shot
Dimensions with innovative cycle synchronization automation (Length x Diameter x Height)
102 mm x 25.4 mm x 38.5 mm
Dimensions (Length x Diameter x Height)
100 mm x 25.4 mm x 32 mm
Finished Product Weight
90 g
Operating Temperature Range
min. -15° C, max. +50° C
Relative Humidity
≤ 80%
Regulated ROF
1 to 40 RPS (BB feed correctness depends on magazine)
Velocity
250 – 650 FPS
Operation Mode
Closed-Bolt / Open-Bolt
Pressure Range
60 do 140 PSI
ASTER II Bluetooth® for V3
Supply Voltage Range [AEG application]
3.75 – 12.9 V
Supply Voltage Range [HPA application]
5 – 8.6 V
Rated Current
30 A
Current Consumption
20 mA
Low Power Mode
130 µA
Dimensions (Length x Width x Height)
73.5 mm x 24 mm x 12.5 mm
Finished Product Weight
26 g
Operating Temperature Range
min. -15°C max. + 50°C
Relative Humidity
≤ 80%
