Cyma Platinum Submachine Gun CM.106A Black

Description

Cyma Platinum Submachine Gun CM.106A Black

Cyma Platinum Submachine Gun CM.106A Black

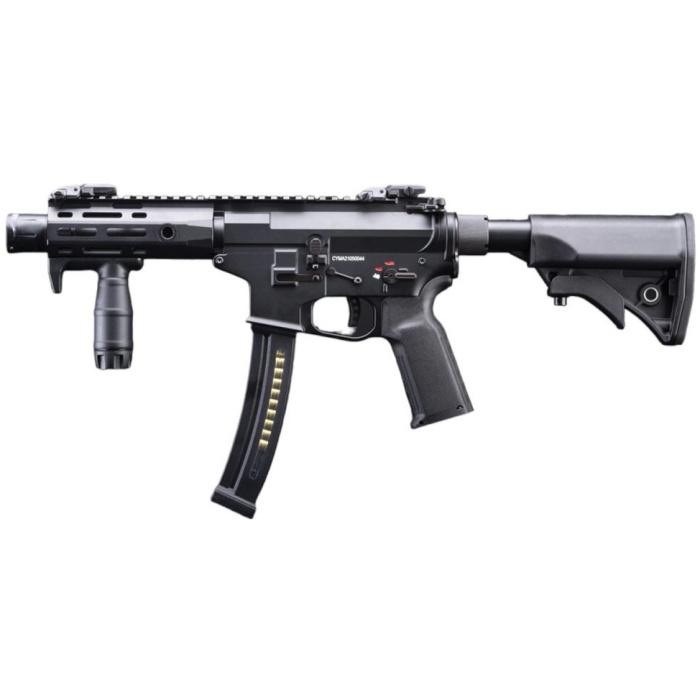

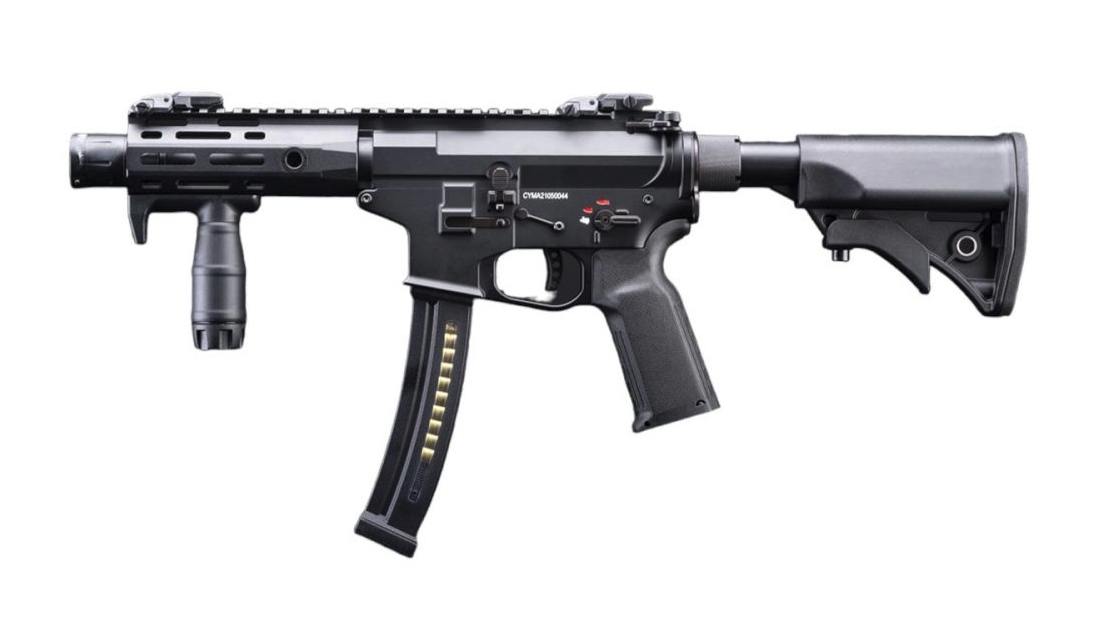

Cyma Platinum CM.106A (AR-9) – Overview & Features

Platform & Purpose
The CM.106A is a compact AR‑9-style airsoft AEG, blending M4/AR15 ergonomics with MP5 influences, optimised for fast, close-quarters (CQB) gameplay.

Build & Exterior Design

• Construction: Largely full-metal (receiver, handguard, upper/lower parts) with select polymer components (magazine, grip, stock cover, sights)

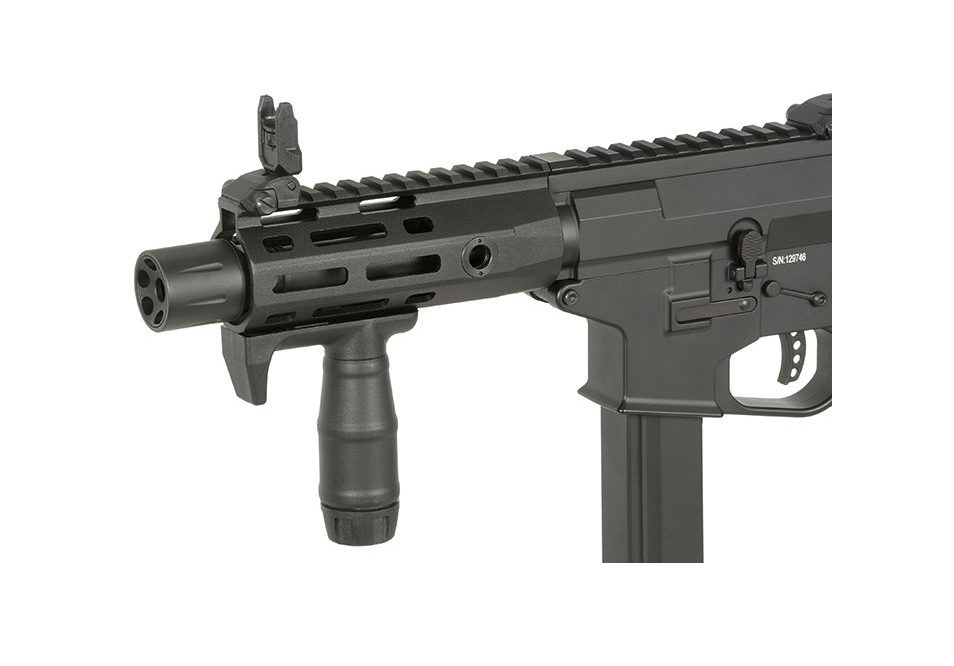

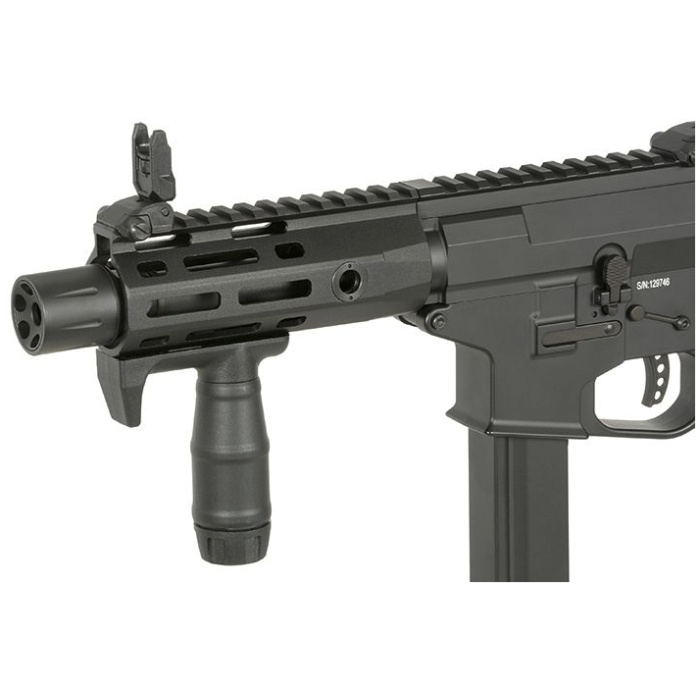

• Handguard: CNC‑machined M‑LOK with a full-length top Picatinny rail; comes with a vertical foregrip and hand-stop fitted, plus QD sling swivel attachments.

• Sights: Polymer flip-up front and rear sights mountable on the Picatinny rail; adjustable for windage and elevation .

• Flash Hider / Sound Amplifier: Pre-installed compact muzzle device on a 14 mm CCW thread. It produces a distinct “boom” when fired—a psychological edge in CQB—and is recessed for a sleek appearance .

• Receiver and Controls:

  • Alloy receiver with a hard-wearing matte black finish; includes realistic details like a shortened dust cover, shell deflector, pressable—but non-functional—forward assist, and a low-profile charging handle.

  • Ambidextrous fire selector (safe / semi / full auto), prominent magazine release, enlarged trigger guard, and ergonomic skeletonized trigger—all designed for speed and accessibility.

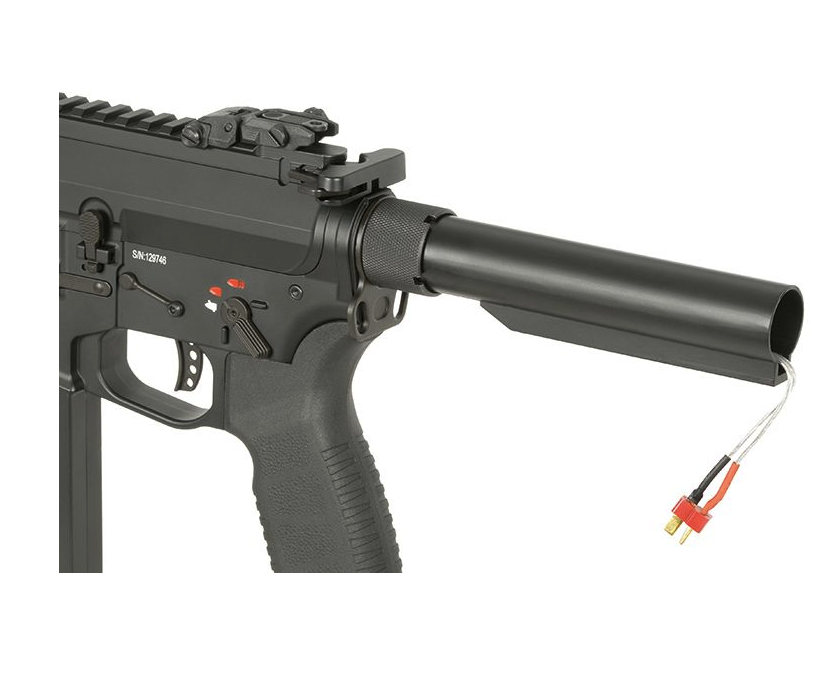

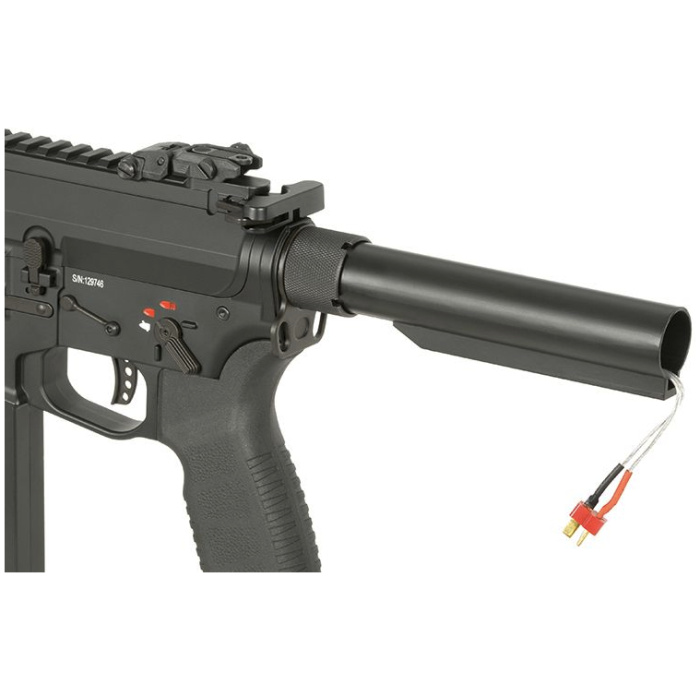

  • Adjustable M4-style stock on a standard buffer tube. The buffer tube houses the battery compartment, and stock features QD sling points for various sling setups.

Internal Upgrades & Performance

• Gearbox & Internals:

  • Reinforced Version‑2 gearbox shell with quick‑spring‑change system via buffer tube, featuring a pre-installed ETU/MOSFET for improved trigger response.

  • Upgraded internals:

    • CNC steel 13:1 gearset

    • 8 mm ball bearings

    • Full‑steel‑tooth polycarbonate piston

    • CNC-machined aluminum silent cylinder head & piston head (with ball-bearing piston head and double O‑ring cylinder head)

    • Ball‑bearing spring guide

    • High-speed motor for rapid firing and crisp trigger feel.

• Barrel & Hop-Up:

  • Tight-bore 6.03 mm inner barrel (length ~145–155 mm).

  • Adjustable hop-up unit—accessible via dust cover area.

• Battery & Power:

  • Compatible with 7.4V or 11.1V LiPo batteries (preferably stick type), with a Deans (T-Plug) connector inside the buffer tube

  • Achieves around 330 fps, and with a LiPo battery can reach ~25 rounds per second for a blistering rate of fire.

Size, Weight, & Accessories

• Dimensions & Mass:

  • Length: 545 mm – 630 mm (stock collapsed to extended).

  • Weight: ~2.3 kg (2300–2320 g).

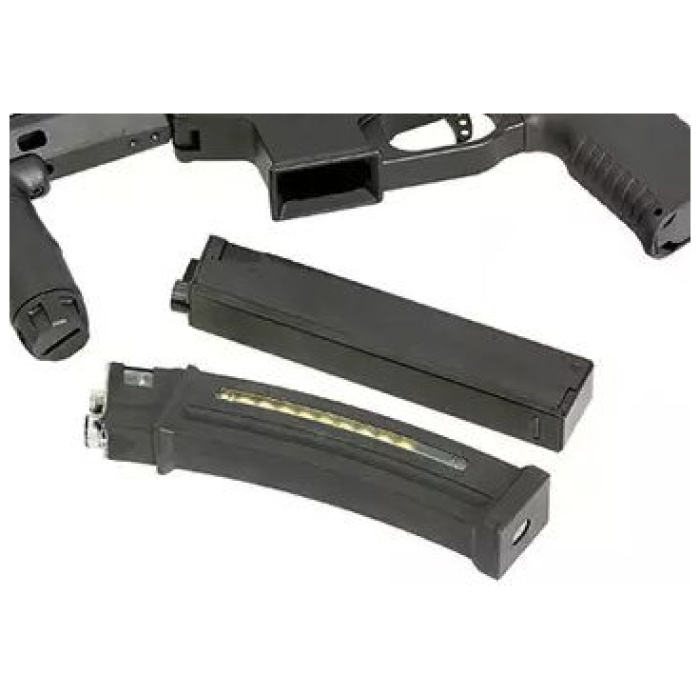

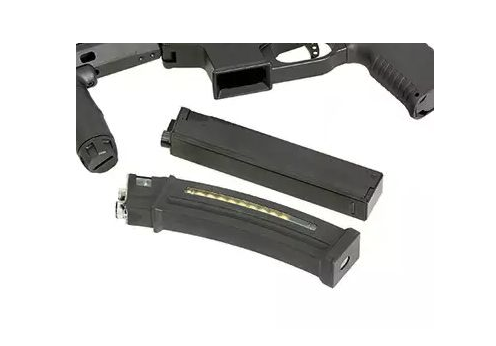

• Magazines: Includes 2 × mid-cap magazines, 130-round capacity each; MP5-style design with either metal or polymer build (some with transparent inserts).

The Cyma Platinum CM.106A—also marketed as AR-9 or “Rapid Strike”—is a premium compact airsoft SMG:

• Built tough with CNC metal parts and smart ergonomics for CQB.

• Supercharged internal components (MOSFET, quick spring swaps, tight barrel) deliver impressive performance out of the box.

• Highly modular, with rails and sling mounts for attachments and loadout tailoring.

• Ready for upgrades and internal tinkering, making it an excellent pick for both new players and tech-savvy veterans alike.
