Description
Gate WARFET AEG Control System ver 1.1
Gate WARFET AEG Control System ver 1.1
The GATE WARFET AEG Control System ver. 1.1 is a powerful external MOSFET and control unit upgrade designed to improve trigger response, protect your electrical system, and give you more control over how your AEG performs. It’s a great choice for skirmishers who want a noticeable performance boost over standard wiring without committing to an internal ETU install—ideal for upgrading a wide range of AEG platforms with a clean, versatile setup.
Built for reliability under regular skirmish use, the WARFET helps optimise power delivery from your battery, supports more demanding builds, and adds useful control features for players who want a more responsive rifle and better long-term electrical protection.
Specifications
- Brand: GATE
- Model: WARFET
- Product type: AEG control system / external MOSFET
- Version: ver. 1.1
Why it’s a great buy
- Improves trigger response and electrical efficiency vs stock wiring
- Helps protect trigger contacts and electrical components
- Versatile upgrade option for many AEG builds
- Great for skirmishers who want performance without internal ETU fitting
Features:
- User-friendly configuration via the Tactical Programming Card
- Sturdy and super-small size AEG Controller
- Compatibility with the strongest AEG replicas and batteries (ready to work with LiPo 14.8V, 5000 mAh, 60C)
- Tested with car batteries
- Super-easy installation – thanks to the Mini Tamiya adapters, you can connect WARFET to the original (stock) wiring
- It can work with most built-in MOSFETs
- With stock wiring, WARFET reduces melting switch assemblies
- In hardwired installation, WARFET draws the energy from the battery directly to the motor, bypassing the mechanical trigger contacts
- Resistant to atmospheric conditions (military specifications: MIL-V-173C)
- Deep-drain protection for 7.4V, 11.1V, 14.8V LiPoly and 9.6V, 12.8V LiFePO4
- Improves battery life, ROF, spring life and gearbox reliability

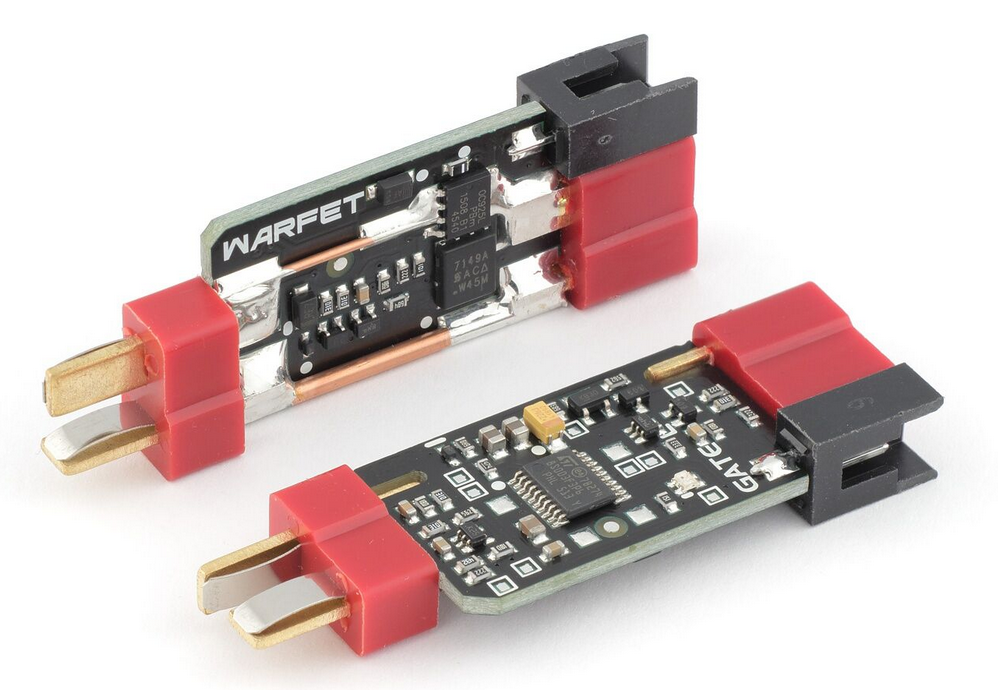

AEG Controller parameters:
- Wide range of supply voltage: 3-17V
- Protection against short-circuits: up to 1000A
- Incredibly low current consumption on stand-by: 0,2mA
- Ultra-low resistance: 2mΩ
- Dimensions: 56x20x9mm
- Weight: 9,4g

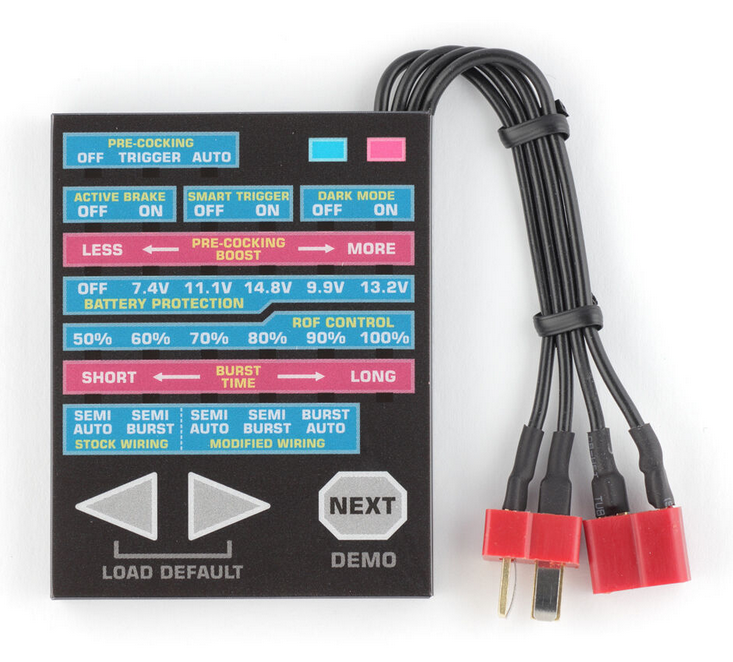

Tactical Programming Card
The outstanding Tactical Programming Card provides you with very easy access to the AEG Controller settings. All you need to do is to connect the Tactical Programming Card between the battery and the Controller. A big advantage is that there is no need to use any additional wires. The AEG Controller can be fitted out of view in your AEG, and you still have easy access to its settings. The Tactical Programming Card communicates with the AEG Controller and displays the most recently saved settings. You can simply change them using three buttons.
Tactical Programming Card parameters:
- Supply voltage: 5-17V
- Number of LEDs: 29
- Number of buttons: 3
- Dimensions: 67x53x7mm
- Weight: 27,3g

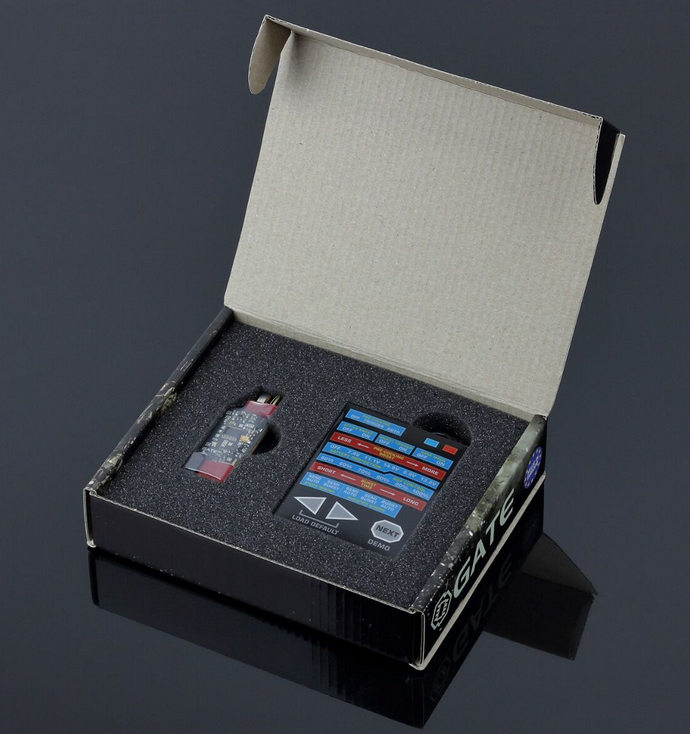

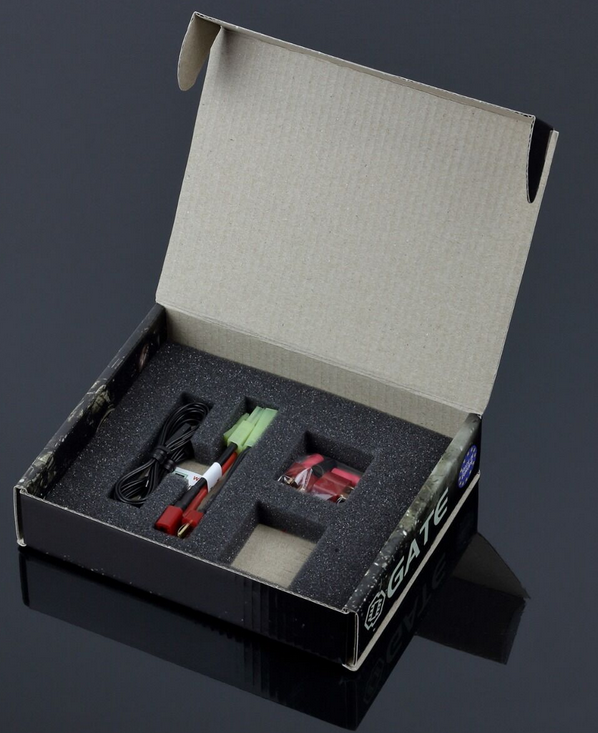

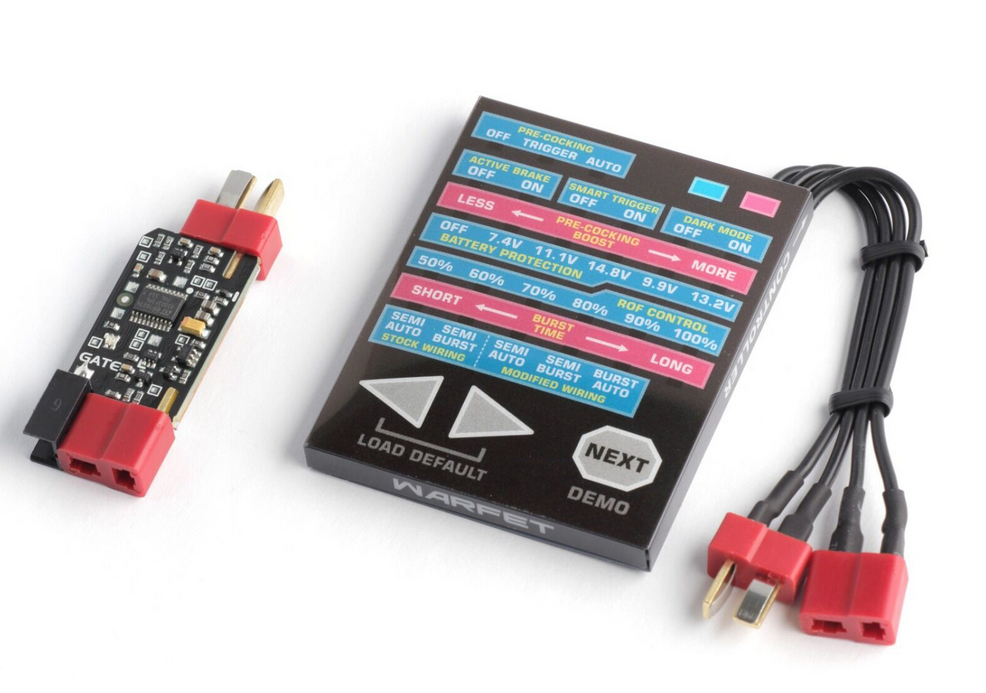

Included in the kit:
- Tactical Programming Card
- AEG Controller

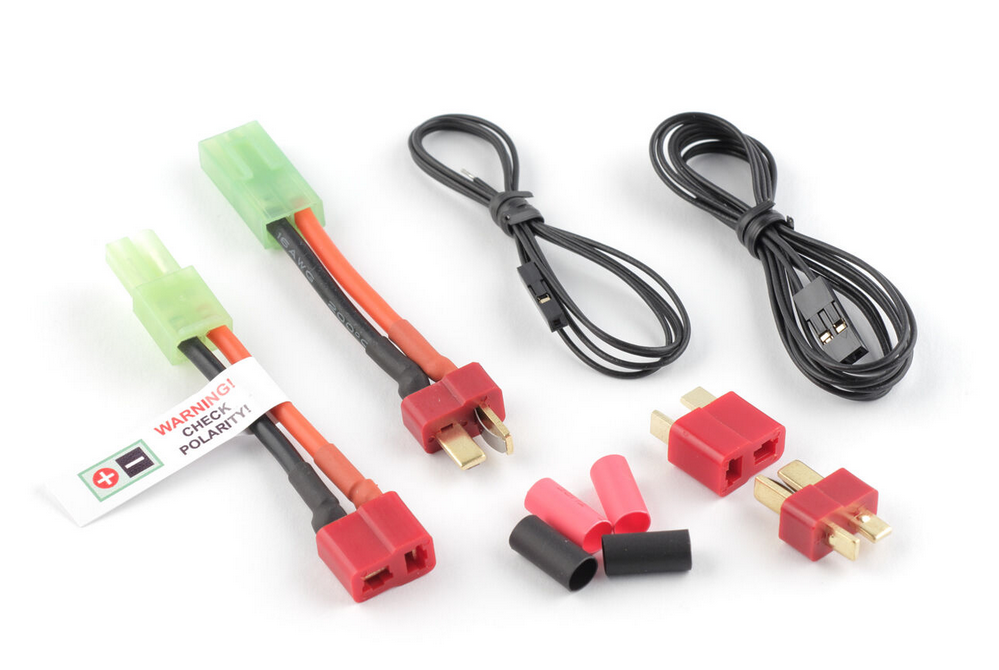

- Battery Mini Tamiya adapter
- AEG Mini Tamiya adapter
- Pair of Deans-T Connectors
- Single Trigger Wire
- Double Trigger Wire
- Quickstart Guide
