Description

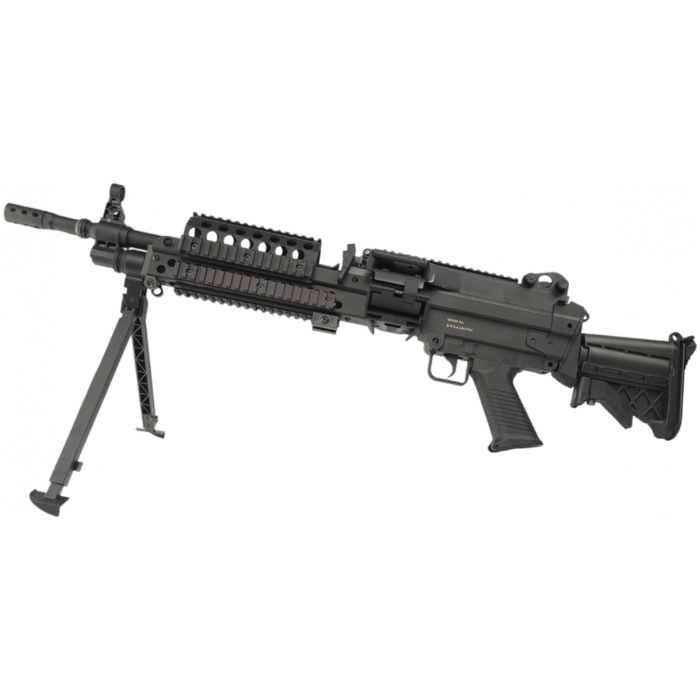

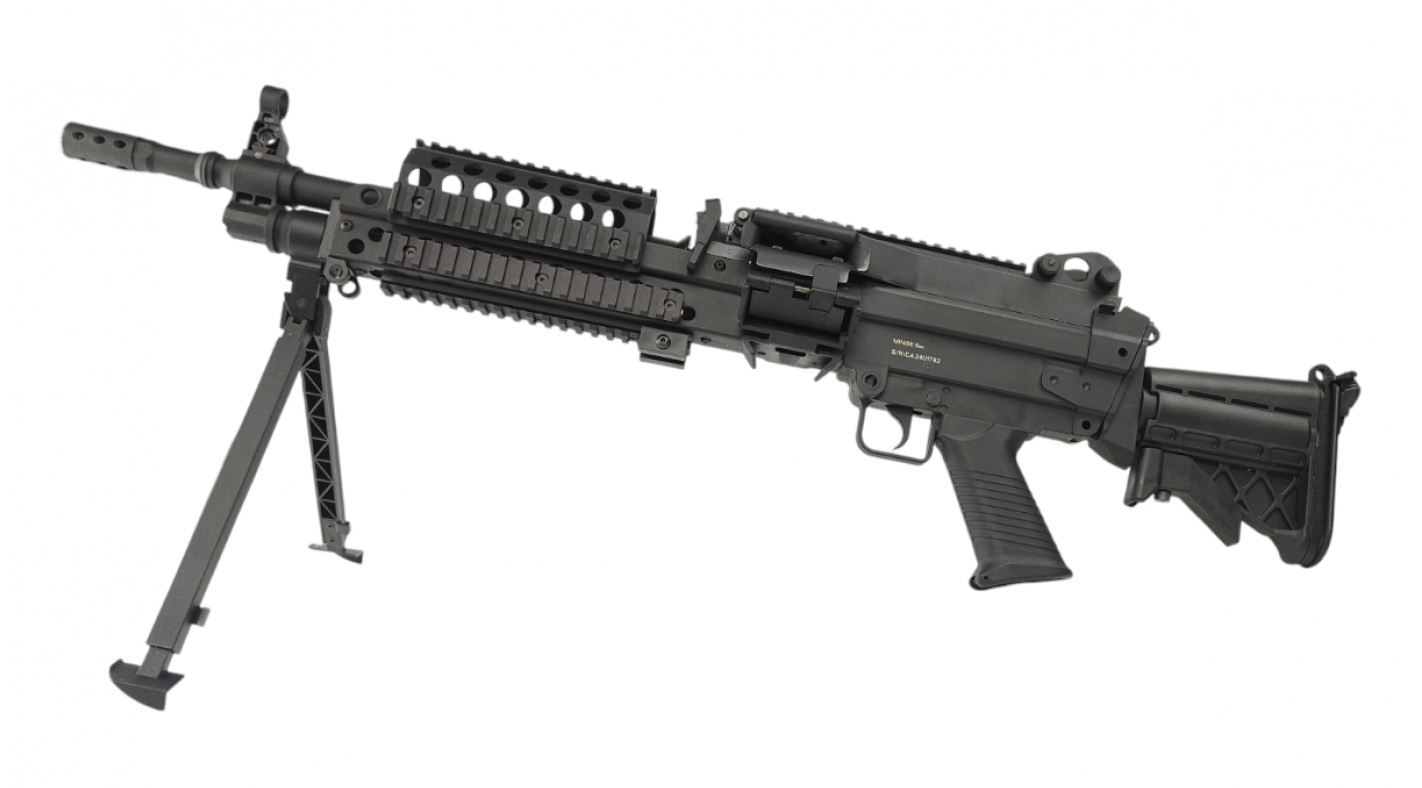

Raven Evolution NEO LMG46 AEG
Raven Evolution NEO LMG46 AEG
Overview
The Raven NEO LMG46 is an electric airsoft support weapon (LMG-style AEG) built on an M4-type platform, blending features of a light machine gun with M4 compatibility.
It is part of Raven’s “NEO” series, which is marketed as offering a good balance of performance, reliability, and affordability.
External / Body / Features
-
Body / Materials: Nylon-filled polymer construction for both the body and rail system.
-
Rails / Handguard: Quad-rail handguard (RIS) for mounting accessories.
-
Bipod: Integrated/folding bipod included.
-
Stock: Adjustable / collapsible polymer stock.
-
Magazine Compatibility: Uses standard M4 AEG magazines (i.e. compatibility with common M4 / AR-type mags) for greater flexibility.
-
Barrel Threading: 14 mm CCW thread (for attachments / mock suppressors) in some versions (e.g. the deluxe version)
Internal / Performance Specs
-
Gearbox: Full-metal gearbox (V2 style) with “Quick Spring Change” system for easier tuning / swapping springs.
-
Bearings / Bushings: 8 mm metal bearings.
-
Gear Ratio / Gear Set: Uses an 18:1 gear set.
-
Trigger / Electronics: Equipped with an Electronic Trigger System (ETS) / MOSFET (e.g. XCortech MOSFET in some versions) to improve trigger response and reliability, and allow use of 11.1 V LiPo batteries.
-
Wiring: 16 gauge silver-coated wiring.
-
Motor: High-torque motor.
-
Piston / Teeth: Full-metal teeth piston.
-
Hop-up / Barrel: Rotary-style hop-up chamber; 6.03 mm precision inner barrel.
Size / Weight
-
Weight: About 7.40 kg (stated by Raven)
-
Overall Length / Dimensions: Exact “length (extended / retracted)” not widely published in detail.
Versions / Extras & Notes
-
Deluxe Version: Some listings note a “Deluxe” version which may include updates like XCortech MOSFET, 14 mm CCW barrel threading, additional magazine (e.g. box magazine) alongside standard M4 style magazine.
-
Included Mags: In the standard version, comes with an M4 high-cap magazine. The deluxe version may include both the M4 mag and a larger / box magazine.
-
Battery Recommendation: 11.1 V LiPo is recommended (with small Tamiya connector) for optimal performance.
-
Upgradability: Because it uses a V2-compatible full-metal gearbox and a “quick spring change” mechanism, internal tuning / upgrades are somewhat facilitated (though caution is always advised).
-
Warning / Disclaimer: The manufacturer warns that modifying internal parts (springs etc.) may void warranty or cause damage.
We have designed the Raven NEO to be affordable without compromising performance. The NEO series is equipped with high-quality nylon filled polymer body and rail system, our new Electronic Trigger System (ETS) that allows the use of 11.1v batteries and boasts improved trigger response and reliability, full metal gearbox with Quick Spring Change, rotary hop-up, 6.03mm precision inner barrel and 8mm metal bearings.
The NEO series is equipped with the LEVIN metal gearbox that is precisely made and equipped with high-quality internals to ensure durability. Each gearbox is equipped with our new ETS, 16 gauge silver-coated wiring, high torque motor, full metal teeth piston, 8mm metal bearings and true quick spring change system
The LMG46 is a tactical take on the M4 LMG platform. Featuring a quad rail, bipod and an adjustable stock, this unique LMG model also uses standard M4 AEG magazines for greater flexibility. With it’s full polymer build, you can enjoy countless hours playing with this lightweight LMG.
